An In-Depth Analysis of a Sophisticated Cyberattack by Kimsuky

Kimsuky's Sophisticated Cyberattack Depth Analysis

Cybersecurity researchers have recently observed an elaborate cyberattack campaign attributed to the North Korean Advanced Persistent Threat (APT) group called Kimsuky. This attack, marked by its innovative tactics and utilization of malicious scripts, demonstrates the evolving sophistication of state-sponsored cyber operations. In this article, we delve into the various stages of the attack, discuss the methodologies used by the threat actors, and provide insight into how organizations and individuals can protect themselves against such threats.

Overview of the Attack

The campaign centers on a ZIP file that contains several components designed to breach targeted systems stealthily while exfiltrating sensitive data. Upon execution, the ZIP file deploys an intricate series of scripts and malware that work in concert to bypass traditional security measures. Researchers from K7 Security Labs have highlighted the use of heavily obfuscated code, which indicates the lengths to which the threat actors will go to ensure their operations remain undetected.

The attack uses a combination of VBScript, PowerShell scripts, and encoded text files. The initial payload includes four files: a heavily obfuscated VBScript (1.vbs), a PowerShell script (1.ps1), and two encoded text files (1.log and 2.log). These files are designed to operate together to establish persistence on the victim’s system, evade detection mechanisms, and ultimately steal valuable credentials and cryptocurrency-related information.

Detailed Analysis of the Attack Chain

Initial Infection and Payload Delivery

The attack begins with delivering a ZIP file, the primary vector for the malware components. The ZIP file’s design is deceptive—it appears to be a simple archive, yet it contains multiple files that execute sequentially. Using a ZIP file allows attackers to disguise the malicious payload among seemingly harmless documents or software updates. Once the ZIP file is opened, the obfuscated VBScript is executed.

The VBScript is carefully engineered to obscure its true intent. By using built-in functions such as chr() and CLng(), the script dynamically generates characters and strings required for its operations. This dynamic code generation helps the script bypass signature-based detection methods that many antivirus solutions rely on. The obfuscation not only conceals the malware’s true purpose but also delays the response from security software until it is too late to prevent further execution.

Deployment of PowerShell and Encoded Scripts

After the VBScript establishes an initial foothold on the system, it triggers the execution of a PowerShell script. This script is another critical component in the attack chain. PowerShell, a powerful scripting language available in Windows environments, is frequently exploited by attackers due to its flexibility and ease of integration into system processes.

The PowerShell script, combined with the encoded text files (1.log and 2.log), is designed to perform several functions: it creates persistence on the victim’s machine, collects system-specific information, and ultimately executes a keylogger along with a cryptocurrency information stealer. By embedding encoded malware components in text files, the attackers ensure that even if one component is detected or blocked, the remaining parts of the payload can still function, maintaining the continuity of the attack.

Advanced Obfuscation Techniques

The Role of Obfuscation in Modern Malware

Obfuscation is a common technique used by cybercriminals to conceal the functionality and intent of their code. In this campaign, the VBScript employs advanced obfuscation techniques to render its code nearly indecipherable to traditional antivirus software. This involves using functions like chr() and CLng(), which are designed to transform numerical values into characters and vice versa. By dynamically generating the required code at runtime, the script significantly reduces its static signature, which is typically used by security tools to flag malicious code.

Evading Signature-Based Detection

Signature-based detection methods are one of the primary defenses against malware; however, the dynamic and obfuscated code used in this campaign makes it exceedingly difficult for these systems to identify the malicious payload. The process involves breaking the code into numerous small segments and reassembling them at runtime. This method confounds signature-based systems and delays the analysis by security researchers, giving the attackers more time to execute their operations and exfiltrate data before a countermeasure can be deployed.

Execution and Anti-Analysis Capabilities

Malware Execution Process

Once the PowerShell script is activated, the malware begins its execution process by gathering system-specific data. One of the first tasks is to collect the compromised system’s BIOS serial number. This unique identifier creates a dedicated directory within the system’s temporary folder, ensuring the malware can operate without interference. System-specific identifiers also allow the malware to tailor its operations based on the configuration of the victim’s machine.

Anti-Analysis and Virtualization Detection

A notable feature of this malware is its ability to detect if it is running in a virtualized environment, such as VMware. Cybersecurity professionals commonly use virtual machines to analyze malware safely without risking a live network. The script includes a specific check to determine if the system’s identification string contains references to VMware. If such an environment is detected, the malware immediately terminates its execution. This anti-analysis capability demonstrates the attackers’ intent to avoid detection and complicate the efforts of cybersecurity professionals trying to study its behavior.

The malware’s anti-analysis routines cover any temporary files that might be left behind during its initial execution. Commands within the PowerShell script are responsible for removing files from the temporary directory, ensuring that the infection leaves as few traces as possible. This self-deletion process complicates forensic investigations and minimizes the window of opportunity for defensive measures to take effect.

The Multifaceted Impact on Victim Systems

Data Exfiltration and Persistence

After establishing a foothold, the malware begins a continuous data collection and exfiltration process. The key components of this process include a keylogger and a cryptocurrency information stealer. The keylogger is engineered to capture all keystrokes made by the victim, which contains sensitive data such as passwords, personal identification numbers (PINs), and other confidential information. Additionally, the malware monitors clipboard content and window titles, providing the attackers with contextual information that can be used to understand the victim’s activities better and potentially identify lucrative targets.

Persistence is another critical aspect of the malware’s functionality. The malware remains active even after reboots by scheduling tasks and modifying system configurations. This persistent presence allows the threat actors to continuously harvest data over an extended period without raising immediate suspicion.

Targeting Cryptocurrency Assets

One of the primary objectives of this campaign is to target cryptocurrency wallets stored within various web browsers. The malware is specifically designed to search for and extract data related to cryptocurrency wallets from popular browsers such as Microsoft Edge, Mozilla Firefox, Google Chrome, and even Naver Whale. Cryptocurrency assets are often highly valuable, and even a small amount of stolen information can lead to significant financial gains for the attackers.

The attackers’ strategy is methodical: By extracting browser data, they can quickly identify and target users who have stored their crypto wallets online. Once this information is collected, it is exfiltrated to a command-and-control server managed by the attackers. The server’s URL, obfuscated as “hxxp://srvdown[.]ddns.net/service3/”, is the final destination for the harvested data. This central repository of stolen information enables the threat actors to coordinate further attacks or directly access the compromised assets.

The Role of Command-and-Control Infrastructure

Communication with the Attackers

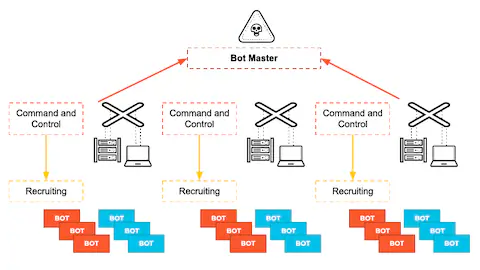

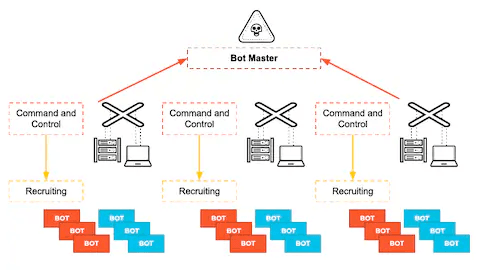

The command-and-control (C2) server plays a crucial role in modern cyberattacks. In this campaign, the exfiltrated data is transmitted to a remote server controlled by the attackers. This server serves as a repository for the stolen data and provides a channel for attackers to issue further commands to the compromised systems. By maintaining this communication channel, the threat actors can update the malware, modify its behavior, or even trigger additional attacks remotely.

Using a dynamic DNS service in the server’s URL suggests an effort to make it difficult for defenders to block or trace the command-and-control infrastructure. Dynamic DNS services allow the attackers to change IP addresses quickly, further complicating efforts to track and neutralize the threat. This level of sophistication underlines the importance of robust network monitoring and threat intelligence systems to detect unusual communication patterns indicative of a C2 connection.

Mitigation and Defense Strategies

Strengthening Endpoint Security

The evolving techniques employed by threat actors such as Kimsuky highlight the need for continuous improvement in endpoint security. Traditional antivirus solutions that rely heavily on signature-based detection are becoming less effective against dynamically obfuscated malware. Organizations must adopt advanced threat detection methods, such as behavioral analysis and machine learning-based systems, which can identify anomalies in system activity even when the code is obfuscated.

Enhancing Network Monitoring

Given the critical role of the command-and-control server in this attack, it is essential to perform network monitoring. This inc is crucial for setting up intrusion detection systems (IDS) and intrusion prevention systems (IPS) that can detect unusual outbound connections. Security teams can quickly identify and block communications between compromised endpoints and the attackers’ C2 server by monitoring network traffic for known malicious domains and dynamic DNS usage patterns.

Implementing Regular System Audits

Regular system audits and vulnerability assessments are key to mitigating the risk of such sophisticated attacks. Organizations should schedule routine checks to detect any unauthorized changes in system configurations or the presence of suspicious files, especially in temporary directories where malware often resides. Conducting these audits helps in early detection and containment of potential breaches before significant data exfiltration occurs.

Educating Employees and End-Users

The human element remains one of the most vulnerable aspects of cybersecurity. Regular training and awareness programs can help employees recognize and report suspicious activities, such as unexpected ZIP file downloads or unknown script executions. Organizations can reduce the risk of initial infection by educating users on the importance of verifying the source of files and the dangers of opening unsolicited attachments.

Using Multi-Factor Authentication

Another layer of defense against credential theft is the implementation of multi-factor authentication (MFA). Even if attackers succeed in capturing login credentials via keylogging, MFA can provide an additional barrier, making it significantly more challenging for attackers to gain unauthorized access to critical systems or financial accounts.

The Broader Implications of State-Sponsored Cyberattacks

The Geopolitical Landscape

Cyberattacks attributed to state-sponsored groups like Kimsuky are not just technical incidents; they are part of a broader geopolitical struggle. These campaigns are designed to advance national interests, whether by undermining the security of rival nations or by gathering intelligence on strategic targets. The sophistication of these attacks reflects significant investments in cyber capabilities, which are now an integral part of modern warfare and international relations.

Economic and Operational Disruptions

The financial impact of such attacks can be enormous, particularly when cryptocurrency assets and sensitive personal data are involved. Beyond immediate financial losses, these breaches often lead to long-term operational disruptions. If personal data is compromised, organizations may face costly remediation efforts, loss of customer trust, and potential legal liabilities. The cascading effects of a single successful attack can ripple through supply chains, affecting multiple sectors and regions.

Building Resilience Against Advanced Threats

Organizations must build resilience by adopting a proactive cybersecurity posture in response to the increasing threat state-sponsored actors pose. This involves investing in advanced technology and fostering a culture of security awareness and continuous improvement. By integrating threat intelligence into daily operations and collaborating with industry peers, organizations can develop a more robust defense against emerging cyber threats.

Conclusion

The sophisticated cyberattack campaign by Kimsuky demonstrates the evolving nature of state-sponsored cyber threats. With its multi-layered approach, involving obfuscated scripts, PowerShell exploitation, dynamic payload generation, and advanced anti-analysis measures, this attack is a stark reminder of the ongoing challenges in cybersecurity. It underscores organizations’ need to adopt comprehensive security measures beyond traditional antivirus solutions.

Several steps can be taken to mitigate the risk posed by such advanced threats, from enhancing endpoint security and network monitoring to regular system audits and employee education. Moreover, understanding these attacks’ broader geopolitical implications and economic consequences can help organizations better prepare for future incidents.

Reference: Cybersecurity News
