In recent research, a sophisticated method has been revealed that bypasses Microsoft’s Windows Defender antivirus by leveraging a combination of direct system calls (syscalls) and XOR encryption techniques. This breakthrough not only exposes critical vulnerabilities in one of the most widely deployed security solutions available on Windows devices, but it also highlights the continuous evolution of attack methods that challenge conventional defenses.

The researchers behind this study have demonstrated that by exploiting a key architectural feature of the Windows operating system, attackers can circumvent traditional execution flows. In doing so, they are able to execute malicious code while evading detection by Windows Defender. This blog post provides a detailed examination of the technique, explains its underlying mechanisms, and discusses the potential security implications along with recommended mitigations.

Understanding the Underlying Architecture of XOR Encryption Bypass

The Windows Execution Flow

At the heart of this bypass technique lies the fundamental structure of Windows operations. Typically, when an application needs to perform a system-level task, it follows a series of well-defined steps:

User Mode Initiation: The process begins in user mode (Ring 3), where the application makes requests to the operating system.
Windows API Call: These requests are normally funneled through Windows API libraries, such as kernel32.dll, which provide a layer of abstraction.
Transition to ntdll.dll: The call is then forwarded to ntdll.dll, which plays a critical role in managing system calls.
System Call to Kernel Mode: Finally, the request is executed as a system call that transitions from user mode to kernel mode (Ring 0), where the core functions of the operating system reside.

Under normal circumstances, each step in this sequence is monitored by various security mechanisms to ensure that only legitimate operations are performed.

Direct Syscalls and Their Role in the Attack

The breakthrough discovered by the researchers involves bypassing the intermediate steps that are usually subject to security scrutiny. Instead of following the conventional chain—from kernel32.dll to ntdll.dll—attackers directly invoke the syscall instruction along with the appropriate syscall number. This deviation from the normal path means that the malicious code can be executed without passing through the usual user-mode monitoring processes.

By using direct syscalls, attackers effectively hide their activities from defensive mechanisms that rely on tracking the usual execution flow. This allows them to inject and execute code that would otherwise be flagged as suspicious or outright blocked by antivirus software like Windows Defender.

The Role of XOR Encryption Bypass in Concealing Malicious Code

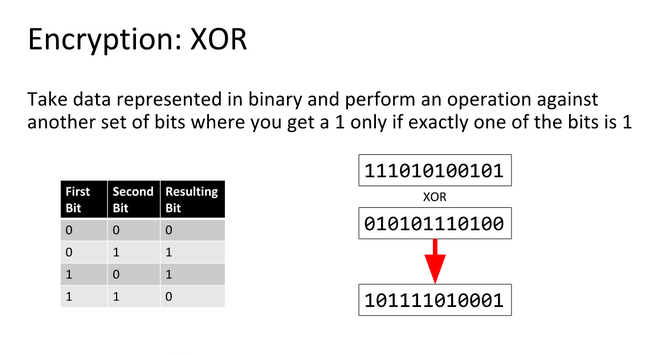

Fundamentals of XOR Encryption

XOR encryption is a simple yet powerful technique used to obfuscate data. The principle behind XOR (exclusive OR) encryption is straightforward: each bit of the original data (plaintext) is combined with a corresponding bit from a secret key using the XOR operation. The result is ciphertext that appears as a random sequence of bytes. The key advantage of this method is its reversibility—when the same key is applied again via XOR, the original data is recovered.

In the context of the bypass technique, the malicious shellcode is encrypted using XOR encryption. This step transforms the payload into a form that is unrecognizable to signature-based detection systems, which rely on known patterns to identify threats.

Decryption and In-Memory Execution

One of the most significant aspects of this approach is that the encrypted payload is decrypted directly in memory just before execution. Because the decryption occurs at runtime and the decrypted code is never written to disk, traditional file-based scanning methods used by antivirus solutions are rendered ineffective. This in-memory decryption ensures that no traces of the malicious code exist on the storage medium, further complicating efforts to detect and analyze the attack.

A Practical Example in C++

Direct Syscalls in C++

To illustrate the concept, researchers provided a snippet of C++ code that demonstrates how direct syscalls can be implemented. In a typical scenario, an application would use standard Windows API calls to request system services. However, by directly invoking the syscall instruction with the correct number, the code can bypass many of the protective layers that monitor user mode activity.

While the detailed code example is technical, the key takeaway is that the attack leverages lower-level access to the operating system’s kernel functions. This not only speeds up the process by cutting out unnecessary layers but also leaves less evidence of the attack’s execution path.

Implications for Security and System Integrity

Evolution of Bypass Techniques

The research findings are particularly concerning because they reveal that this bypass technique has been viable since at least 2022. Despite various modifications and updates to Windows Defender over the years, the technique has managed to persist, proving its effectiveness even against the most recent security patches in 2025. This longevity suggests that attackers have had a considerable window of opportunity to exploit these vulnerabilities in numerous systems across the globe.

Challenges for Signature-Based Detection

Windows Defender, like many traditional antivirus programs, primarily relies on signature-based detection. This method works by identifying known patterns or signatures of malicious code. However, when malicious payloads are obfuscated using XOR encryption and executed through direct syscalls, they do not match any known signature. This makes it extremely challenging for signature-based systems to identify the threat until it is too late.

Moreover, the bypass technique does not leave any malicious artifacts on the disk. Without a traceable file or code segment that can be scanned and analyzed, even post-incident investigations may struggle to reconstruct the attack.

Recommendations for Enhanced Security

Strengthening Kernel-Level Monitoring

One of the primary recommendations emerging from the study is for Microsoft to enhance the monitoring of syscalls at the kernel level. By implementing robust kernel-level security measures, the operating system can detect anomalies in syscall patterns that deviate from typical behavior. This would require a shift from relying heavily on user-mode hooks to more deeply embedded security checks within the kernel itself.

Such enhancements could include:

Anomaly Detection: Developing mechanisms that flag unusual syscall sequences or patterns that are not consistent with normal system operations.
Behavioral Analysis: Employing machine learning models to monitor and analyze syscall behavior in real-time, thus identifying potentially malicious activity even when it does not match known signatures.
Enhanced Logging: Increasing the granularity and retention of syscall logs so that post-attack forensic analysis is more effective.

Implementing Application Allowlisting

Another crucial recommendation is the adoption of application allowlisting. This security approach involves maintaining a list of approved applications that are allowed to run on a system. By restricting the execution of any software that is not on the allowlist, organizations can drastically reduce the risk of executing unauthorized or malicious code. Application allowlisting works particularly well in environments where only a limited set of applications is needed, such as in corporate or industrial settings.

Restricting Administrative Privileges

Limiting administrative privileges is another key mitigation strategy. Many advanced attacks, including those that exploit direct syscalls, rely on elevated privileges to carry out their operations. By enforcing strict controls on who can obtain administrative rights and regularly auditing those privileges, organizations can reduce the risk of such attacks. Additionally, techniques like the principle of least privilege ensure that users and applications have only the minimum necessary access required to perform their functions, thus mitigating the potential impact of any compromise.

Broader Security Implications

Potential for Integration into Larger Attack Chains

Security experts have raised concerns that while Microsoft may consider this technique to have “limited practical applicability” due to its requirement for user interaction, its potential for integration into more complex attack chains should not be underestimated. When combined with other vulnerabilities or social engineering tactics, this bypass method could serve as a critical component in larger, more coordinated cyberattacks. Such multi-stage attacks might involve initial phishing attempts, lateral movement within networks, and the eventual extraction or manipulation of sensitive data.

The Need for Multi-Layered Security Strategies

Given the sophistication of the bypass technique, it is clear that no single security measure can provide complete protection. Organizations should adopt a multi-layered security strategy that combines several approaches to safeguard their systems. This includes:

Network Segmentation: Dividing the network into smaller, isolated segments to contain breaches.
Endpoint Detection and Response (EDR): Utilizing advanced EDR solutions that focus on behavioral analysis rather than relying solely on signatures.
Regular Patching: Keeping operating systems and software up to date with the latest security patches to minimize exploitable vulnerabilities.
User Education: Training employees to recognize and avoid potential security threats, such as phishing emails and suspicious downloads.

Industry Response and Future Directions

The revelations from this research serve as a wake-up call for both vendors and security practitioners. As attackers continue to refine their techniques, security solutions must evolve in parallel. Future updates to antivirus programs like Windows Defender will likely incorporate more sophisticated detection methods that address kernel-level threats and runtime decryption processes. Additionally, industry standards may shift towards more proactive security measures, emphasizing continuous monitoring and adaptive responses over traditional signature-based methods.

Technical Deep Dive into XOR Encryption Bypass and Syscall Bypassing

How XOR Encryption Bypass Enhances Obfuscation

XOR encryption is not new in the realm of cryptography, but its application in this context is particularly effective. The key benefit lies in its simplicity. By using a secret key to encrypt the payload, the malicious code is transformed into an entirely different set of instructions that, on the surface, appear harmless. Since each byte is encrypted using the XOR operation, any attempt by signature-based scanners to identify known malicious code patterns is thwarted.

Furthermore, because XOR encryption is reversible, the payload is only decrypted in memory during execution. This method ensures that at no point does the unencrypted payload reside on the disk, thereby eliminating one of the primary avenues for detection by antivirus software.

Direct Invocation of Syscalls: A Closer Look

The concept of invoking syscalls directly is a powerful reminder of how closely attackers can interact with the operating system. Normally, system calls are mediated by libraries that incorporate various security checks. By bypassing these libraries, attackers gain a direct line into kernel functions, allowing them to execute code without interference from user-mode monitoring tools.

The researchers showcased how a carefully crafted payload, once encrypted and then decrypted in memory, could make direct syscall invocations to perform operations that Windows Defender would otherwise flag. This level of control at the system level is both a technical achievement and a serious security concern.

Real-World Testing and Demonstrated Success

Experimentation with Meterpreter Payloads

In their tests, the researchers employed a Meterpreter reverse shell payload generated by msfvenom. After encrypting this payload using XOR, they executed it via the direct syscall approach. The outcome was significant: the attack bypassed the latest Windows Defender protections without leaving any malicious files on disk. This experiment highlights the practical viability of the technique in a real-world scenario, where evasion of detection is paramount for successful exploitation.

Persistence Despite Continuous Updates

One of the most alarming aspects of this research is that the bypass technique has been consistently effective over a period spanning several years. Although Microsoft has released updates to mitigate similar bypass techniques in the past, the method under discussion here has shown resilience, continuing to work even against the latest security updates in 2025. This persistence underscores the need for continuous innovation in defensive security measures.

Strategic Recommendations for Organizations

Prioritizing Layered Security Approaches

Organizations must acknowledge that modern threats often exploit multiple vulnerabilities simultaneously. Relying solely on Windows Defender or any single security solution can leave systems exposed. To combat these sophisticated bypass techniques, organizations should consider implementing a layered security approach that incorporates both technological and procedural safeguards.

A multi-faceted security strategy might include the following elements:

Endpoint Detection and Response (EDR): Advanced EDR systems that monitor behavior in real time can detect anomalies associated with direct syscall exploitation.
Intrusion Prevention Systems (IPS): Network-level defenses that identify and block suspicious activities before they reach individual endpoints.
Behavioral Analytics: Tools that analyze patterns of behavior across the network to detect deviations that may indicate an attack.
Regular Security Audits: Routine checks and penetration testing to identify and remediate vulnerabilities before they can be exploited.

Enhancing Training and Awareness

In addition to technical defenses, organizations should invest in regular security training and awareness programs for employees. Educating users about the dangers of phishing, suspicious downloads, and other common attack vectors can significantly reduce the likelihood of an initial breach that could lead to the exploitation of vulnerabilities like the one described here.

The Future of System-Level Security

Advancements in Kernel-Level Security

The research calls for a rethinking of how security is implemented at the most fundamental levels of the operating system. Moving forward, there is a growing consensus among security experts that enhanced kernel-level monitoring is essential. Future developments may include:

Hardware-Assisted Security: Leveraging hardware features such as Intel’s Control-Flow Enforcement Technology (CET) or ARM’s Pointer Authentication to provide additional layers of protection.
Dynamic Analysis Tools: Real-time monitoring tools that can analyze the behavior of syscalls and detect anomalies without introducing significant performance overhead.
Collaborative Security Frameworks: Greater collaboration between software vendors, cybersecurity firms, and researchers to develop unified standards and protocols for kernel-level security.

Integration of Artificial Intelligence in Threat Detection

Artificial intelligence (AI) and machine learning are increasingly being integrated into security solutions to enhance threat detection capabilities. These technologies can analyze vast amounts of system data in real time, identifying subtle patterns that might indicate an attempted bypass or other malicious activity. By continuously learning from new threats, AI-driven security systems can provide a dynamic defense that adapts to evolving attack methods.

Conclusion

The discovery of this advanced bypass technique—combining direct syscalls with XOR encryption—serves as a stark reminder that even the most robust security solutions can be vulnerable to sophisticated attack methods. With the ability to evade Windows Defender by bypassing traditional execution paths and decrypting payloads in memory, attackers can achieve a high level of stealth and persistence.

For organizations and individuals alike, this research emphasizes the necessity of a layered security strategy. By enhancing kernel-level monitoring, implementing application allowlisting, restricting administrative privileges, and adopting behavioral analytics, it is possible to create a defense-in-depth strategy that can mitigate even the most advanced threats.

As cyber attackers continue to refine their methods and exploit fundamental aspects of operating system architecture, security professionals must remain vigilant. Continuous improvement in defensive measures, combined with proactive threat detection and user education, will be key to safeguarding systems against evolving cyber threats.

Ultimately, the evolution of such bypass techniques signals a new era in cybersecurity—one where traditional methods of detection are no longer sufficient, and a holistic, multi-layered approach to security becomes essential. Organizations must not only rely on built-in defenses like Windows Defender but also invest in additional security measures and remain agile in the face of ever-changing threat landscapes.

Sources: Cybersecurity News, Hackmosphere, GBHackers News
